9 - VIBRATION TESTING UNDER VARIABLE CLIMATIC CONDITIONS

We test in a chamber with a volume of up to 12 m³

Dynamic Vibration & Climate Integration Testing

Our vibration testing laboratory combines mechanical stress with controlled climatic conditions. Using electrodynamic shakers ranging from 22 kN to 60 kN with integrated chambers (-70 °C to 180 °C), we perform comprehensive vibration testing across frequencies from 5 Hz to 5 kHz. Our capabilities include sinusoidal, random, and mixed mode vibration, mechanical shocks, and field-replicated data testing. We can test complete modules weighing up to 800 kg and combine vibration with high temperatures up to 1100 °C for fatigue and life testing with Wöhler curve generation.

Advanced Testing Capabilities & Compliance

We offer custom test fixture design and production with CAE analysis support, contactless vibration measurement using Doppler vibrometry, and acoustic assessment with multi-microphone systems. Our facility provides active car cooling system simulation, high-voltage powering up to 1500 V DC, and 60-channel data acquisition with CAN control. All testing complies with key standards including ISO 16750-3, VW 80000, LV124, and IEC 60068-2 series, ensuring reliable validation for automotive components under combined environmental stresses.

SCOPE

Assessment of appearance

Vibration testing of sinusoidal, broadband random, mixture (SoR, SoS) modes, mechanical shocks, and field replicated data
Combination of vibration and temperatures in climatic chamber in the range from -70 °C to 180 °C
Combination with high temperatures generated by gas burner, heat oven or induction-principle operating equipment up to 1100 °C
Fatigue testing and life testing (Wöhler curves on shaker)
Frequency range from 5 Hz to 5000 Hz
Complete modules testing e.g. dashboard, front/rear bumper up to 800 kg

EQUIPMENT

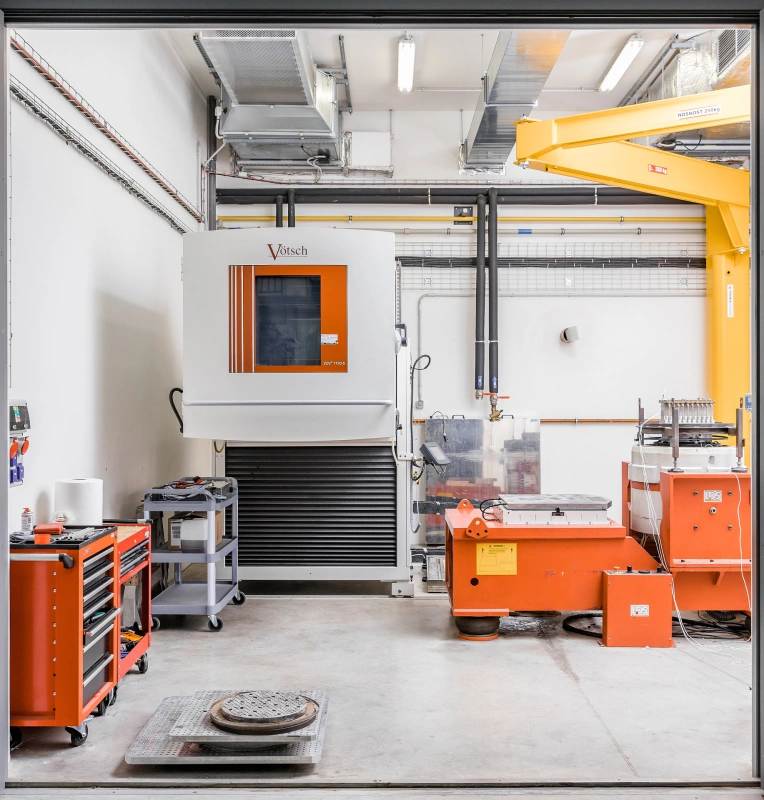

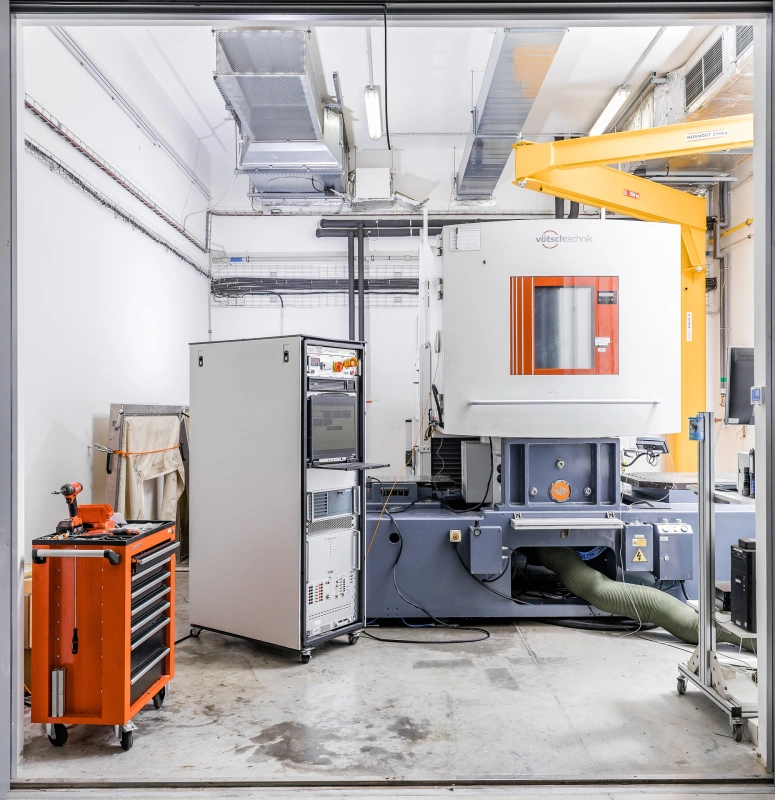

LDS 22 kN with 1 m³ Vötsch climatic chamber, slip table 600 × 600 mm
LDS 35 kN with 1 m³ Vötsch climatic chamber, slip table 900 × 900 mm
UDCO 30 kN with 1 m³ Vötsch climatic chamber, slip table 500 × 500 mm
DongLing 50 kN with 2,2 m³ Vötsch climatic chamber (1400 × 1400 × 1150 mm), slip table GT 500M – 500 × 500 mm, GT 900M – 900 × 900 mm
MADE 40 kN with 1 m³ Vötsch climatic chamber, slip table 600 × 600 mm

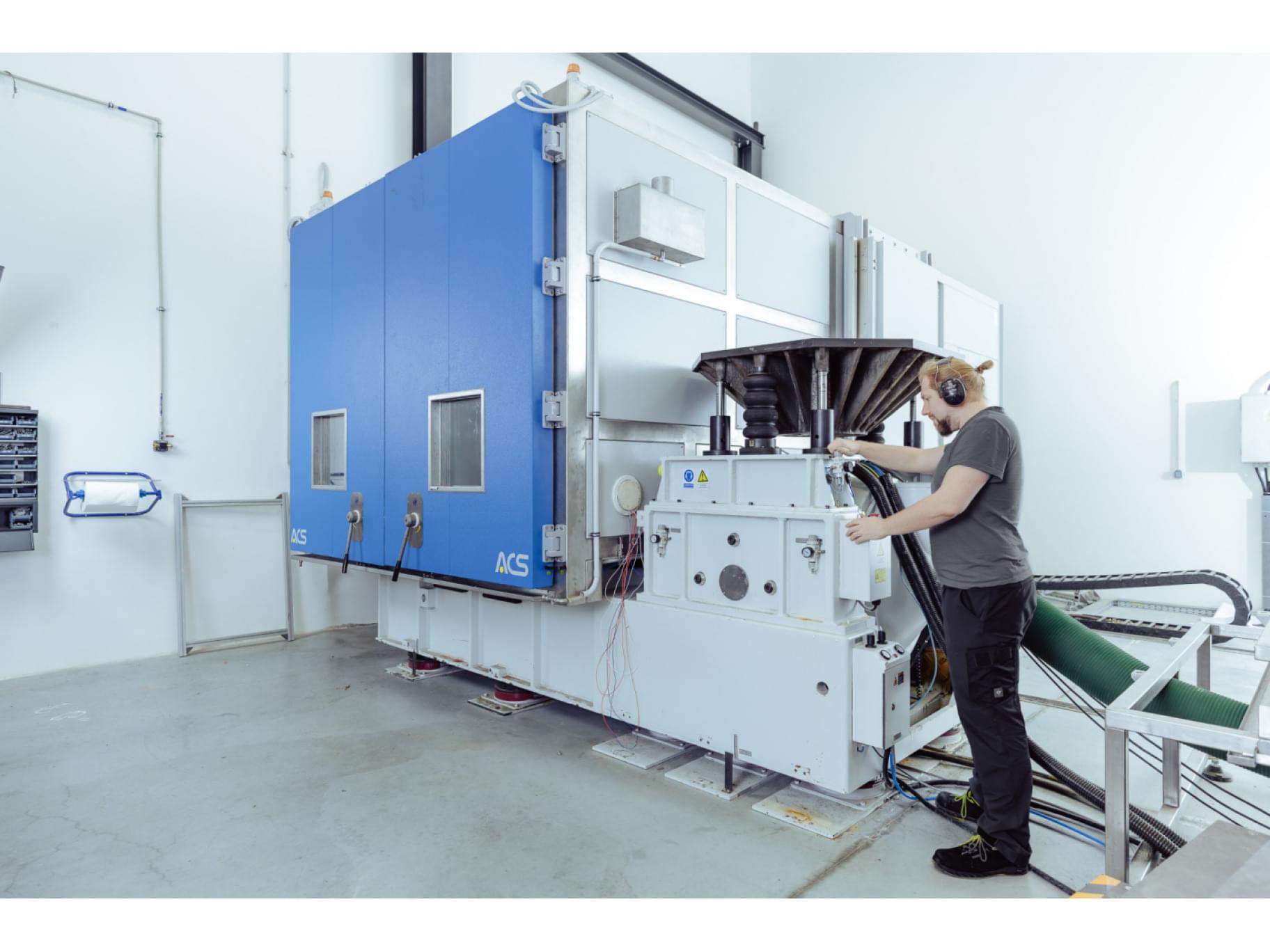

MADE 60 kN with 12 m³ ACS climatic chambre 1980 × 2440 × 2400 mm (with IR radiation function), chamber 2400 × 1700 × 2200 mm (9 m³), slip table 2000 × 1500 mm

BENEFITS

Design and production of test fixtures including CAE analyses
Contactless vibration measurement using single-channel vibrometer (Doppler)

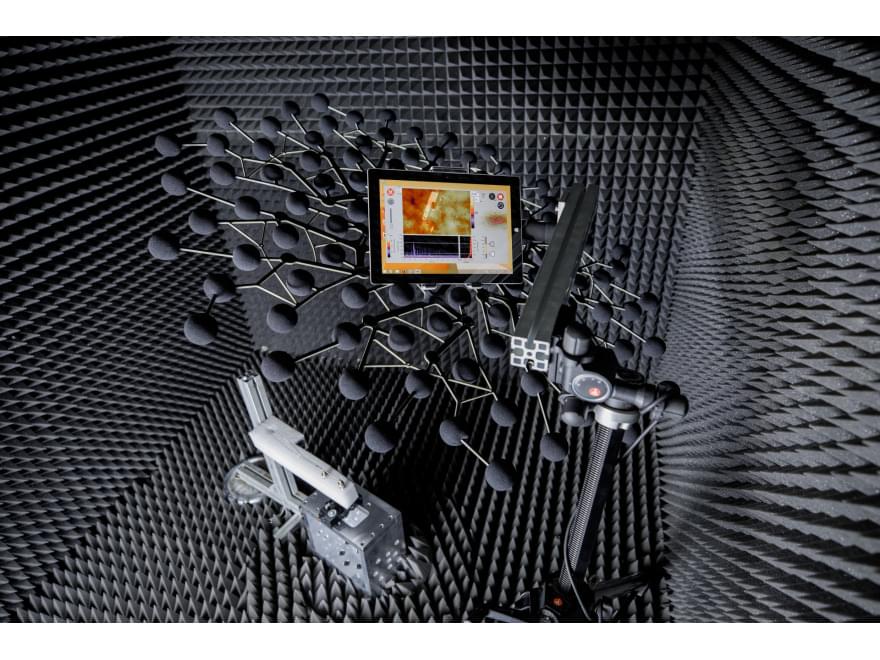

Noise measurement using 1–4 microphones or acoustic field assessment using the acoustic camera (120 microphones) in silent chamber with 1.6 kN shaker excitation (40 dB background)
Additional active simulation of car cooling system
Additional powering systems up to 1500 V DC
DAQ – data logging up to 60 channels
CAN control systems
Consultancy services
