19 - ELECTROMAGNETIC COMPATIBILITY (EMC) AND ELECTROSTATIC DISCHARGE (ESD) TESTING

We test for automotive, industrial and commercial applications

Electromagnetic Compatibility Testing

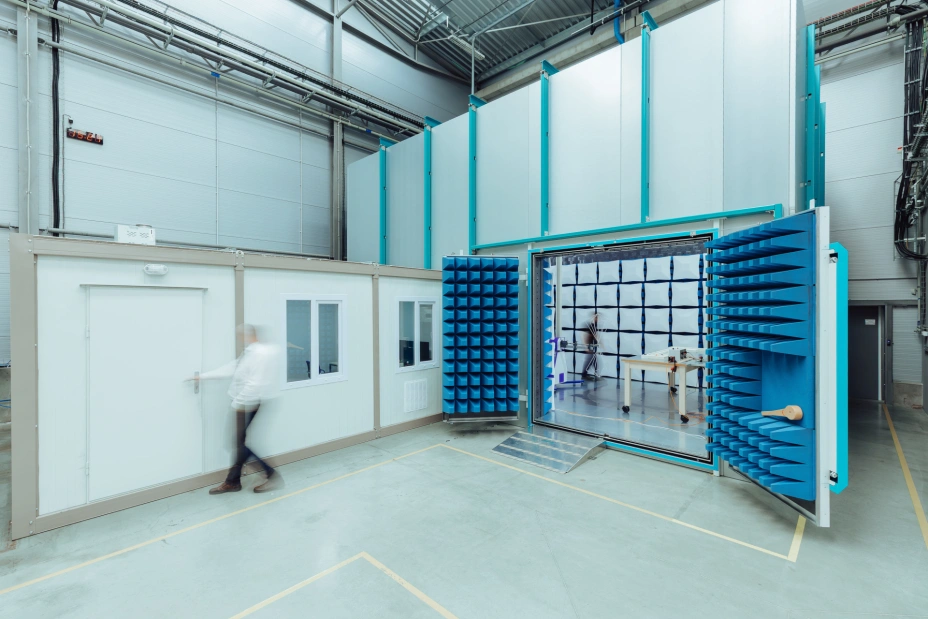

Our EMC testing facility features a spacious semi-anechoic chamber (7.8 x 5.3 x 4.8 m) for comprehensive emissions and immunity testing. Current capabilities include radiated and conducted emissions measurements plus ESD testing, with radiated and conducted immunity testing in preparation. The facility utilizes Rohde & Schwarz measuring receivers covering 1 Hz to 26 GHz with FFT capabilities, complemented by professional-grade antennas for precise field measurement.

Advanced Support Systems & Standard Compliance

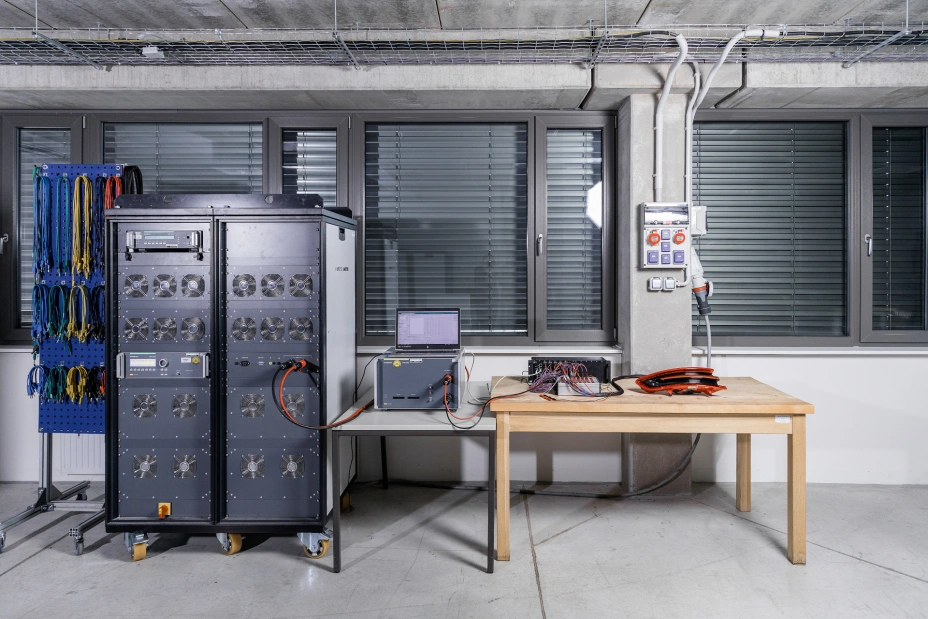

We provide sophisticated test support including high-power AC (230 V/400 V, 63 A) and DC supplies (1.500 V, 300 A), active liquid cooling with fire protection, and high-resolution camera monitoring. All measurements utilize optically insulated signal paths for control and data acquisition. Testing complies with automotive standards including CISPR25 and ISO 10605, plus industrial standards CISPR 16, with capability for additional standards in development.

SCOPE

Radiated emissions - RE
Conducted emissions – AN
Radiated immunity – RI
Conducted immunity – BCI

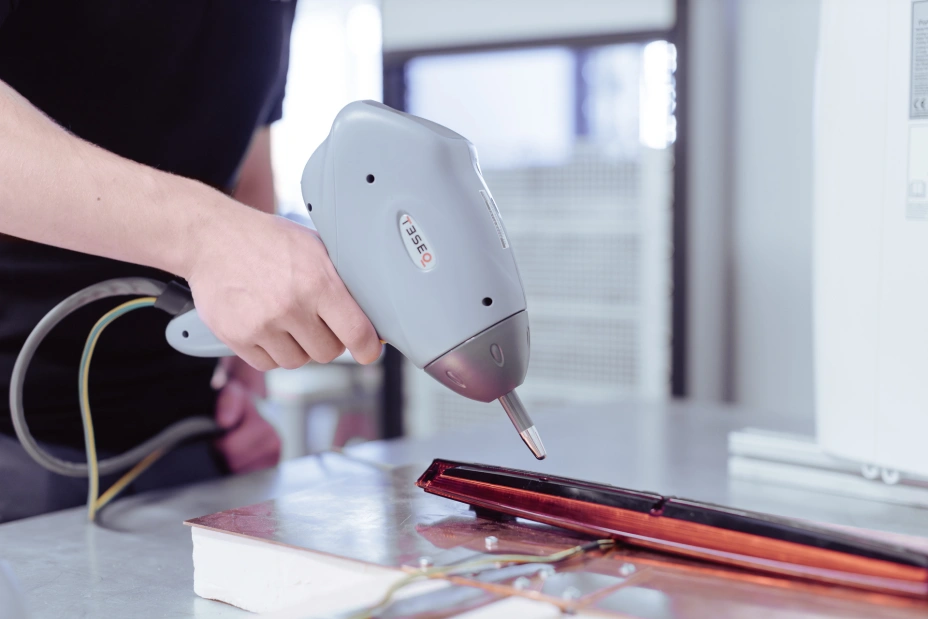

Electrostatic discharge – ESD

EQUIPMENT

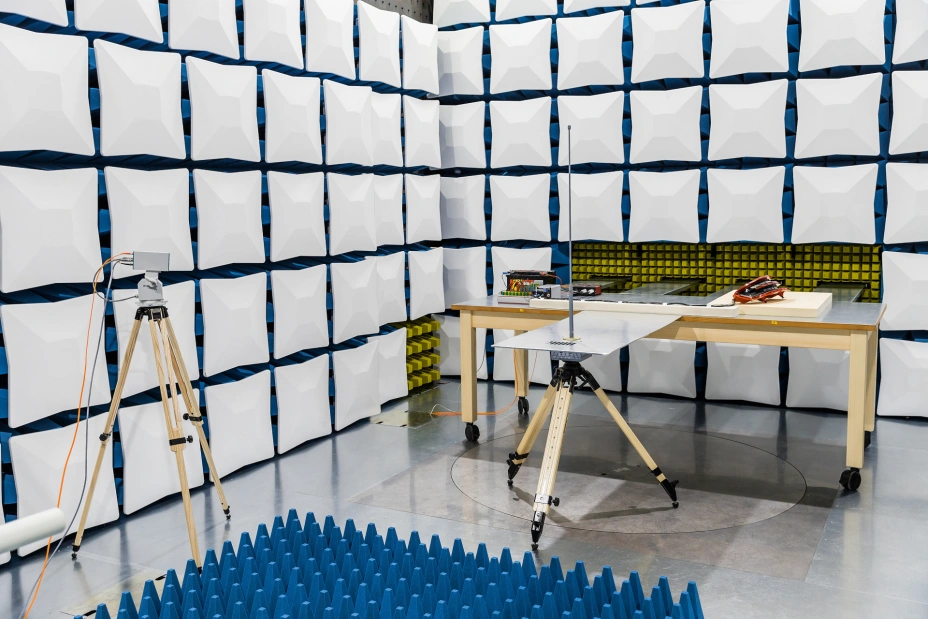

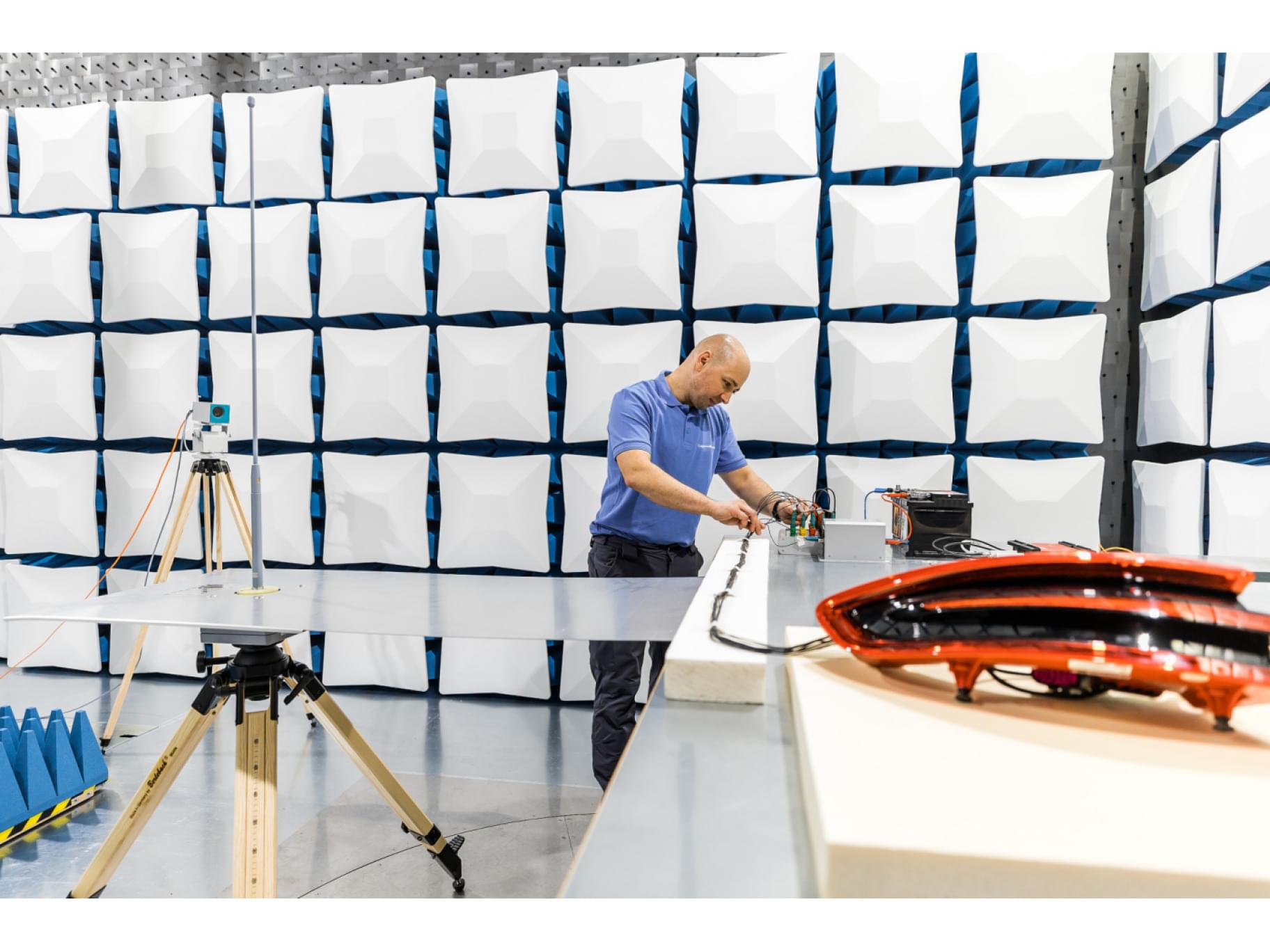

Semi-anechoic chamber: internal operating dimensions: 7,8 × 5,3 × 4,8 m; max. DUT dimensions Ø 1,5 m × 1,5 m; max. floor load: 500 kg/m²
Measuring receiver: Rohde & Schwarz, frequency range 1 Hz – 26 GHz; FFT type
Antennas: Rohde & Schwarz, Schwarzbeck

BENEFITS

DUT AC supply: up to 1P 230 V, 3P 400 V, max. current 63 A
DUT DC supply: up to 1500 V, up to 300 A
Active cooling of DUT by liquid, fire protection system
Inside camera with high resolution and Picture changes recognition
Optically insulated: measuring, various control signals (e.g. CAN, PWM, ethernet, a.o.)
Big data storage
Advanced online safety conditions (sample protection)

STANDARDS
