14 - AIRBAG DEPLOYMENT TESTING

Cameras record up to 5,000 frames per second

High-Precision Airbag Deployment Analysis

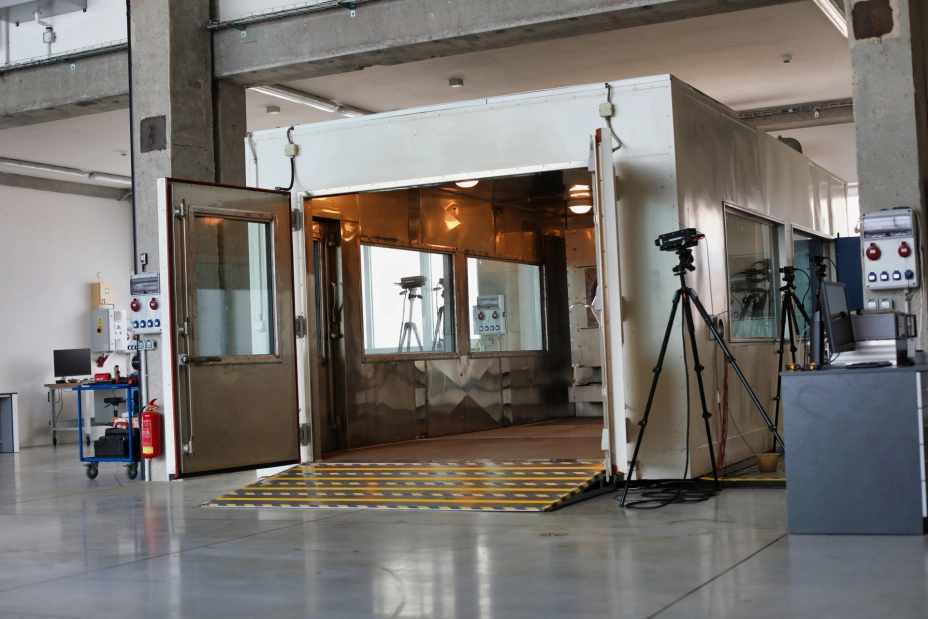

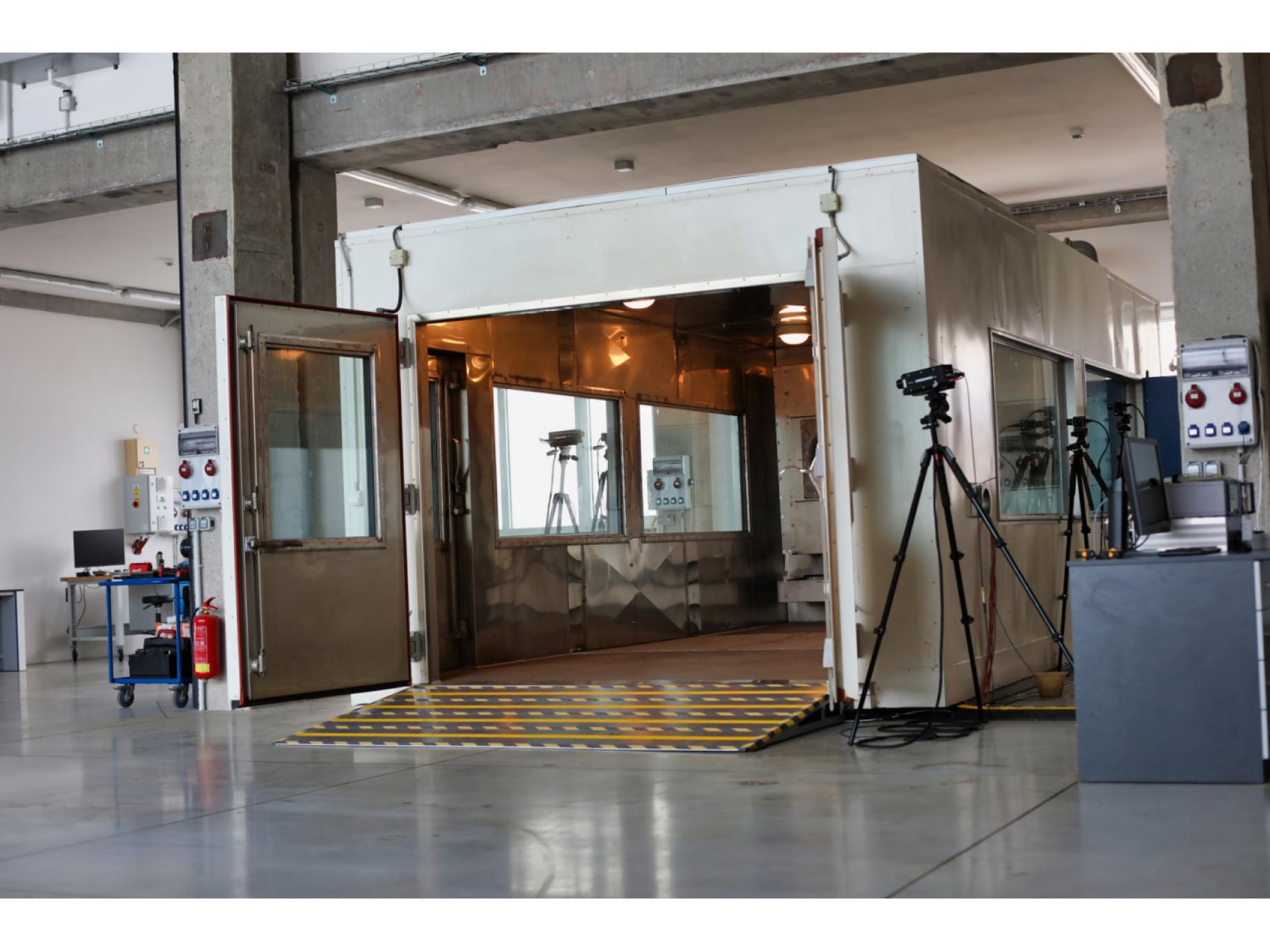

Our facility conducts static deployment tests for all airbag types (CAB, Knee, Passenger, Side) in controlled climatic conditions (-35 °C to +100 °C). Testing can be performed inside large climate chambers (3.200 x 5.500 x 2.400 mm) accommodating components up to full BIW chassis, or outside using a rail system. The Microsys Surefire 6 test system provides precise control with 6+ firing channels, while 10 high-speed cameras (5.000 fps) and 12 high-intensity LED lights ensure detailed deployment visualization with 1 MHz data acquisition.

Comprehensive Testing Support & Compliance

We provide complete testing support including fixture design/manufacturing, supply chain coordination, and detailed documentation. Our facility offers safe customer viewing areas with data connections, prompt test report delivery, and flexible sample storage. All testing complies with standards including PV 3545/3546/3550, AK-LV 01, and VW 82511/82513, with post-test sample recycling through certified companies. The service is complemented by access to a wide range of additional accredited tests available in-house.

SCOPE

Static tests of CAB-, Knee-, Passenger- and Side-airbags deployment (COP + Development test)
Tests in controlled climatic conditions
Both methodologies systems available: inside the climatic chamber or outside the chambre using rail system
Lighting and recording system positioning with high repeatability

EQUIPMENT

Microsys Surefire 6 test system

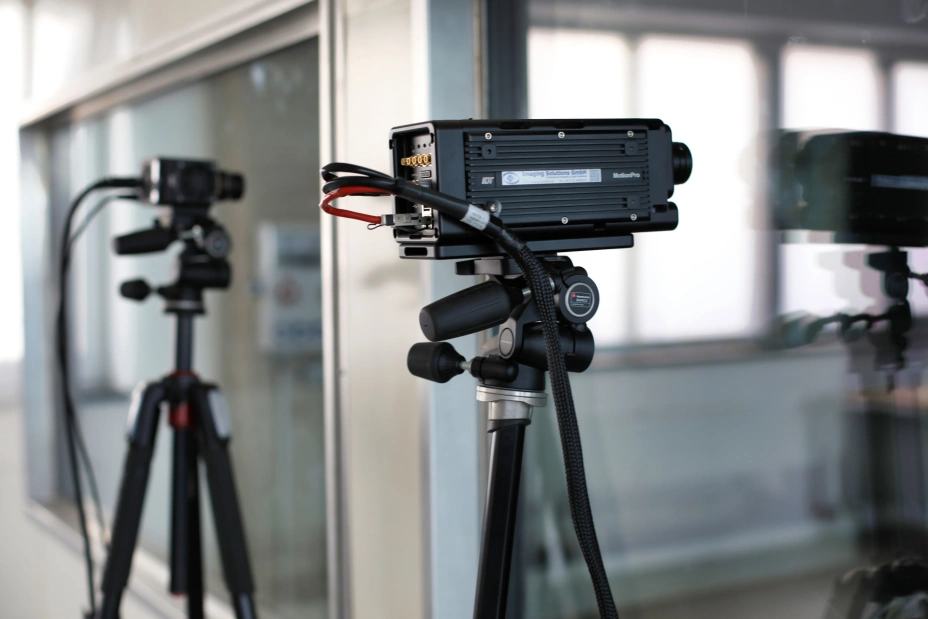

10 units of high-speed cameras: IDT Model OS7 S2, Motion Pro Y3, 1920 × 1080 @5.000 fps). Mounting outside the chamber
12 units of full LED high intensity lights for in-the-chamber application
DAQ system: variable sample rates of up to 1 MHz for a single channel
Measurement of firing voltage and power, resistance, timing
6 firing channels – extendable
Analogue input channels with 16-bit resolution, 0,2 % accuracy
Inner dimension of chambers: 3200 × 5500 × 2400 mm (W × D × H) – samples from component size up to full BIW chassis (Front, Steering Wheel, Passenger, Knee, Curtain, Side, Seat airbags a.o.)
Temperature range: -35 °C – +100 °C

BENEFITS

In-house facilities for testing fixtures design or modification and manufacturing
Coordination of the component supply chain with respect to test setup
Detailed documentation of the samples
Setup for customer´s safe full-view attendance at the tests
Customer´s office with data connection
Prompt test reports delivery
Flexible samples storage fully aligned with the samples storing specifications
Post-test samples scrapping at certified recycling company
Wide spectrum of additional accredited tests in house
