15 - BUMPER IMPACT TESTING (PENDULUM TEST)

We test in 3,5 m³ a 45m³ chamber

Low-Speed Impact Performance Testing

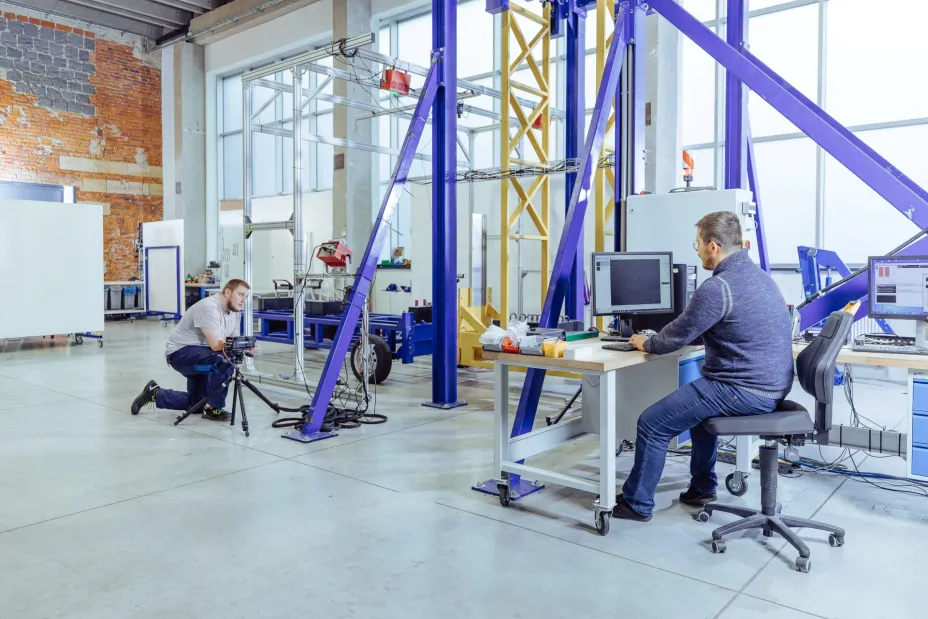

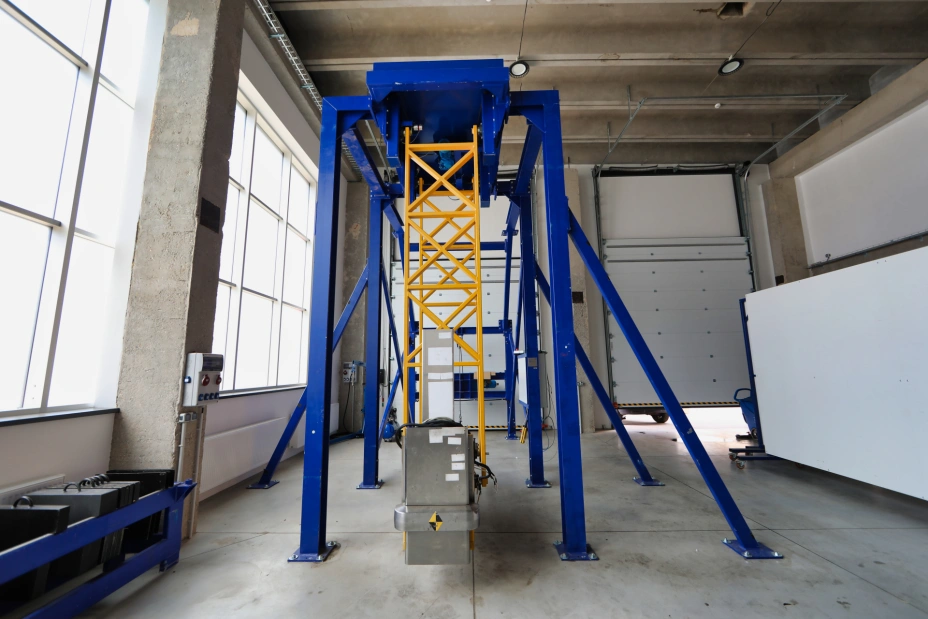

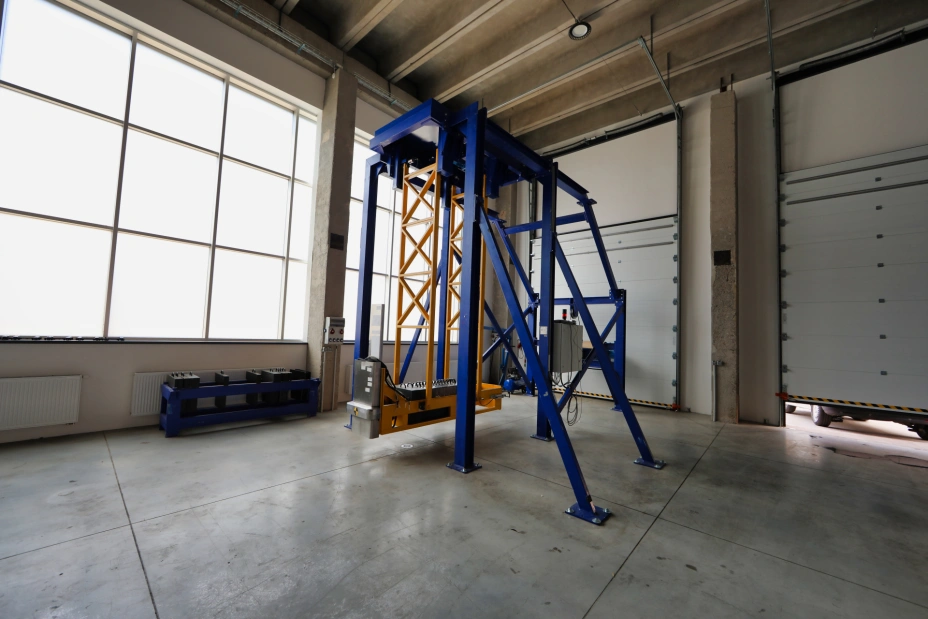

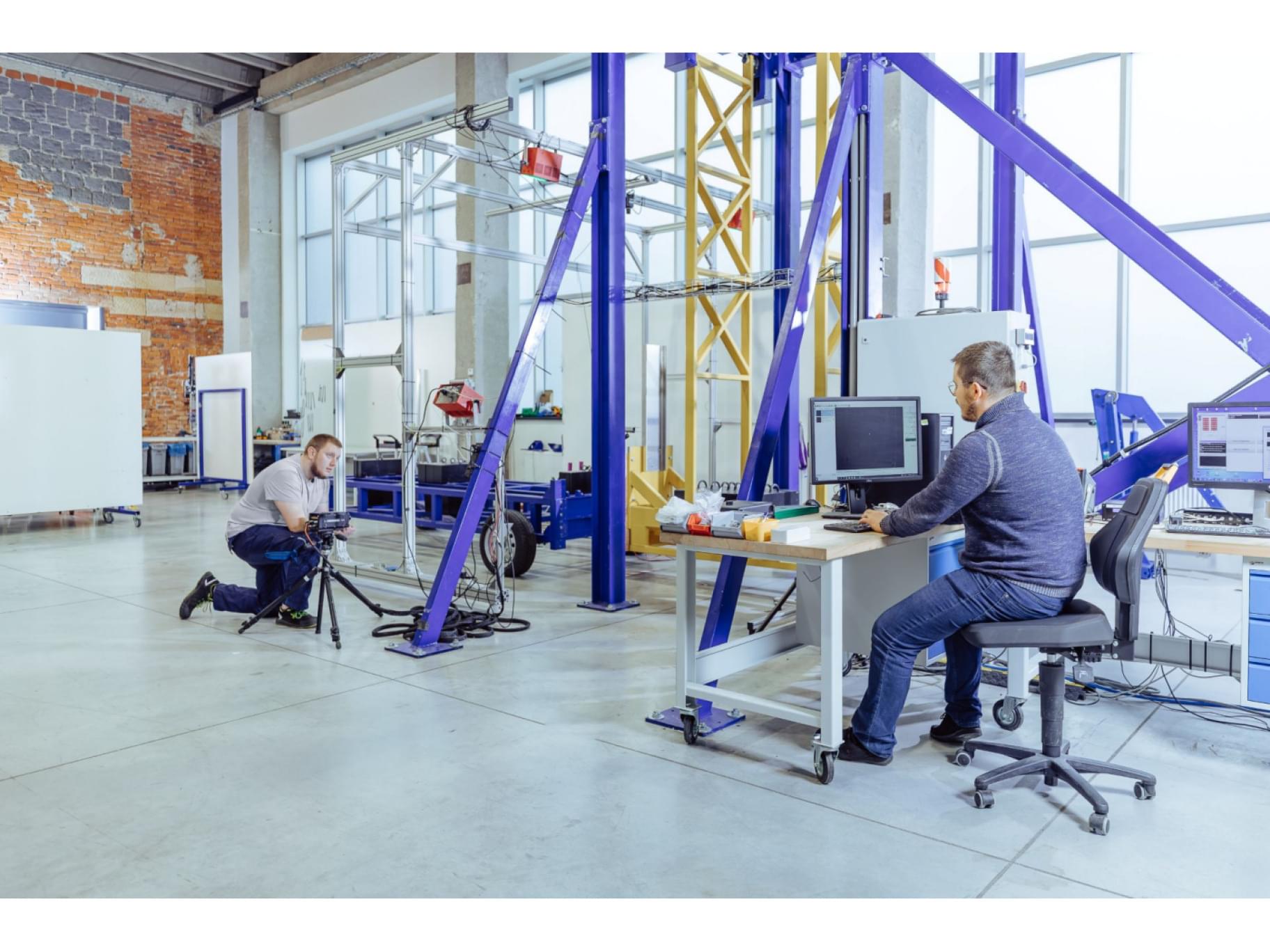

Our bumper pendulum testing facility evaluates structural integrity during low-speed collisions (1-7 km/h) using a precisely controlled impact system. The adjustable pendulum supports impactor weights from 700-3500 kg with vertical positioning from 370-700 mm, providing impact speed accuracy of ±0.05 km/h below 5 km/h. Testing accommodates both component-level evaluation on instrumented trolleys and complete vehicle assessment in our 3,5 m³ and 45 m³ climate-controlled chambers (-40 °C to +90 °C). High-speed cameras (5000 fps) capture detailed deformation behavior throughout the impact event.

Precise Measurement & International Compliance

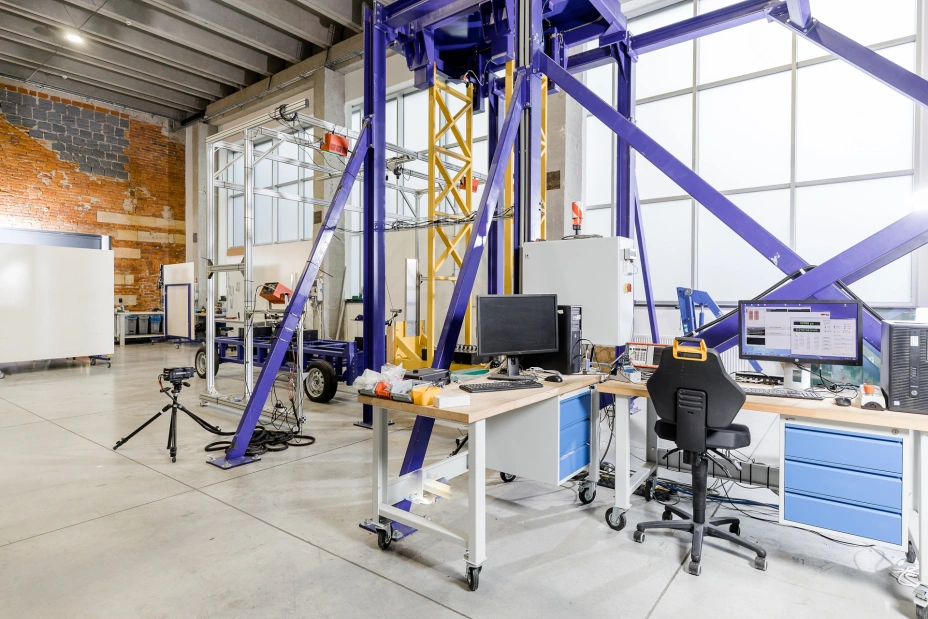

Our facility features calibrated speed trap systems eliminating pre-test adjustments, acceleration sensors for crash event monitoring, and load cells measuring force distribution across impact areas. Results evaluation includes advanced photogrammetry using GOM or Aicon systems. The CE-marked, TÜV-certified test equipment complies with global standards including US Part 581, ECE-R42, CMVSS 215, and various national regulations, providing comprehensive validation for international market approval and homologation pre-testing.

SCOPE

Low-speed collision: testing of the structural integrity and robustness of vehicle front-end and rear-end loaded by low-speed mechanical impact
Development tests, approval and homologation pre-tests
Component tests on instrumented test trolley + test jig with bumper structure
Complete vehicle tests – front & rear structure
Tests performed under controlled climatic conditions – 3,5 and 45 m3 chambers
Cold & hot impact (-40 °C to +90 °C)
Up to 10 units of high-speed cameras (5000 fps)
Fully instrumented and automated pendulum height adjustment, speed calculation and winding to the start position

EQUIPMENT

Microsys SureFire SW controlling
Impactor weight: 700 kg – 3500 kg
Impactor vertical position: 370 mm – 700 mm
Speed at impact: 1–7 km/h
Accuracy of speed at impact (<5 km/h): ± 0.05 km/h
Accuracy of speed at Impact (>5 km/h): ± 0.1 km/h

BENEFITS

Calibrated speed trap to control the impact speed (no pre-test for speed adjustment required)
Acceleration sensor to measure the acceleration during the crash event
Equipped with load cells behind the impact area to measure the impact force distribution on both the impactor and the trolley side
Photogrammetry evaluation by Zeiss Quality suite or Aicon systems
CE-marked test device certified by TÜV
