12- INGRESS PROTECTION (IPXX) TESTING

We have developed our own IP tester.

Comprehensive Ingress Protection Validation

Our facility conducts complete IP testing according to ISO 20653 and IEC 60529 standards using specialized equipment including custom Tiyo-designed testers for IPX3 to IPX9K. We perform water splash tests (ISO 16750-4), car wash simulation with brushes (PV 3.3.3), and comprehensive sealing validation using 1m³ dust chambers with various test media and 2 m³ splash chambers for muddy/salty/clean water testing. Our capabilities extend to high-voltage applications up to 800 V DC with advanced immersion testing.

Enhanced Testing & Analysis Capabilities

We offer complete project support including sample preparation with torque-measured sealing, specialized analysis techniques, and post-test evaluation with water ingress determination. Our services include microscopic analysis, insulation resistance testing, pre-aging in climatic chambers, and chemical/UV analysis. All testing incorporates advanced safety protocols with 48-channel monitoring systems (20 MHz sampling rate) and active liquid cooling for test devices, ensuring comprehensive protection assessment compliant with all relevant standards.

SCOPE

All IP tests according to ISO 20653 and IEC 60529
Water splash tests according to ISO 16750-4
Car wash simulation with brushes according to PV 3.3.3.
Wide spectrum of tests validating the functionality of sealing systems and covers
Water and dust content tests (vertical flow)
Simulation of foreign objects

EQUIPMENT

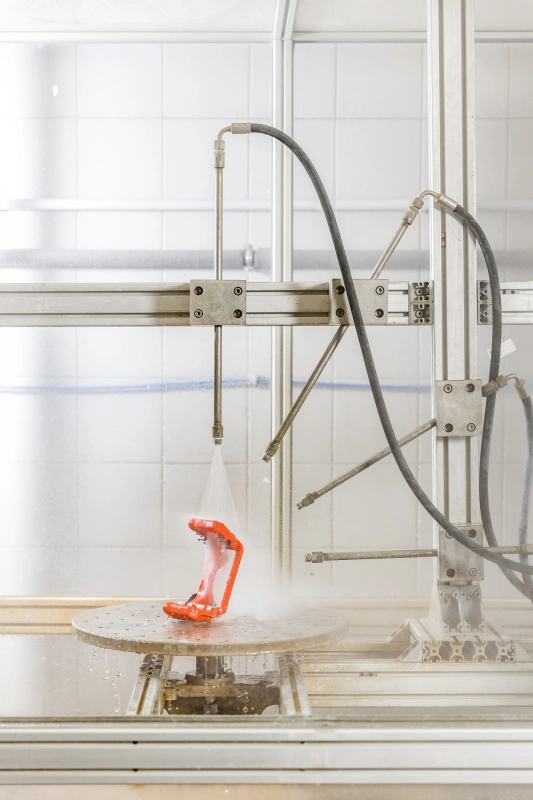

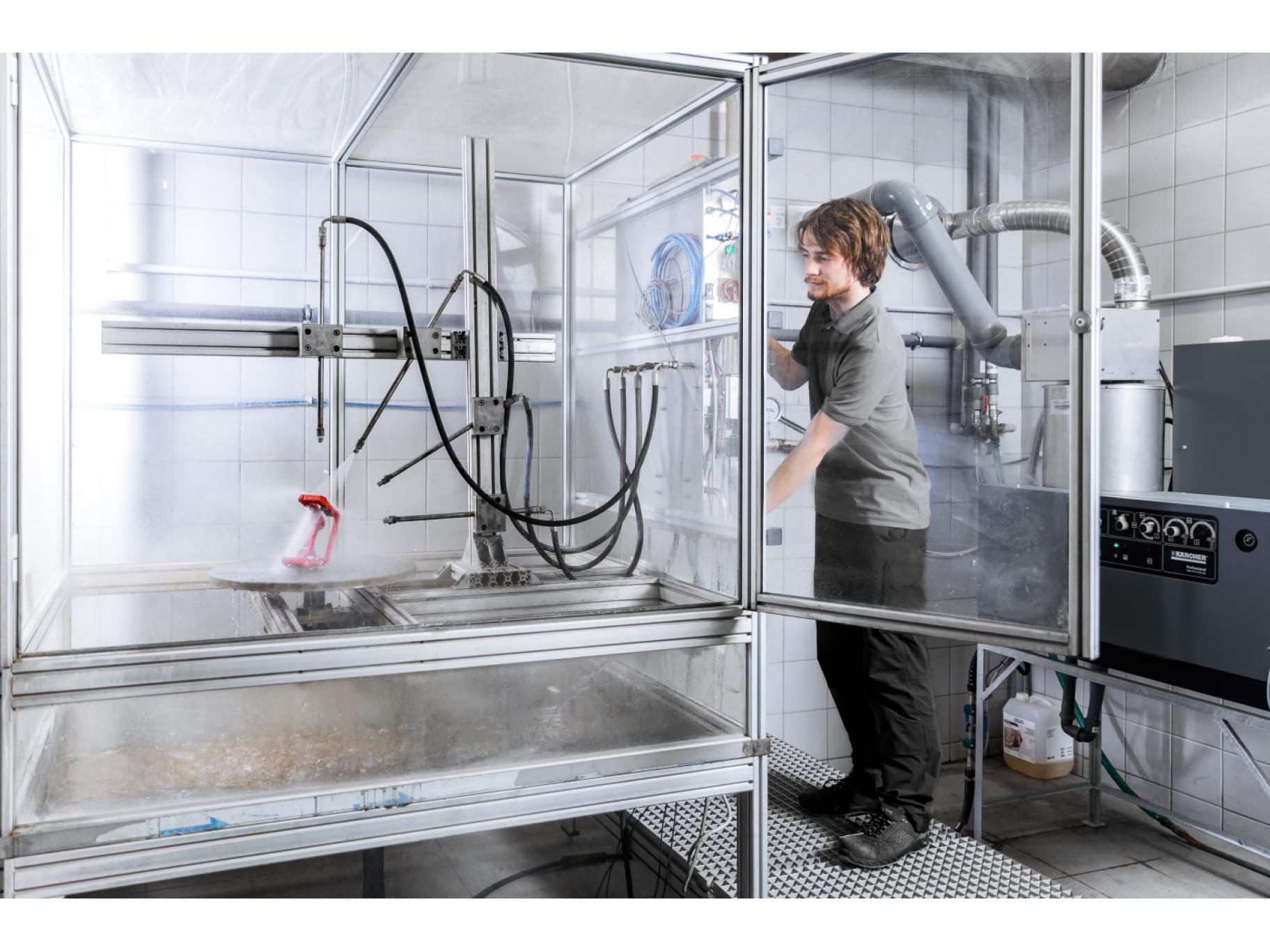

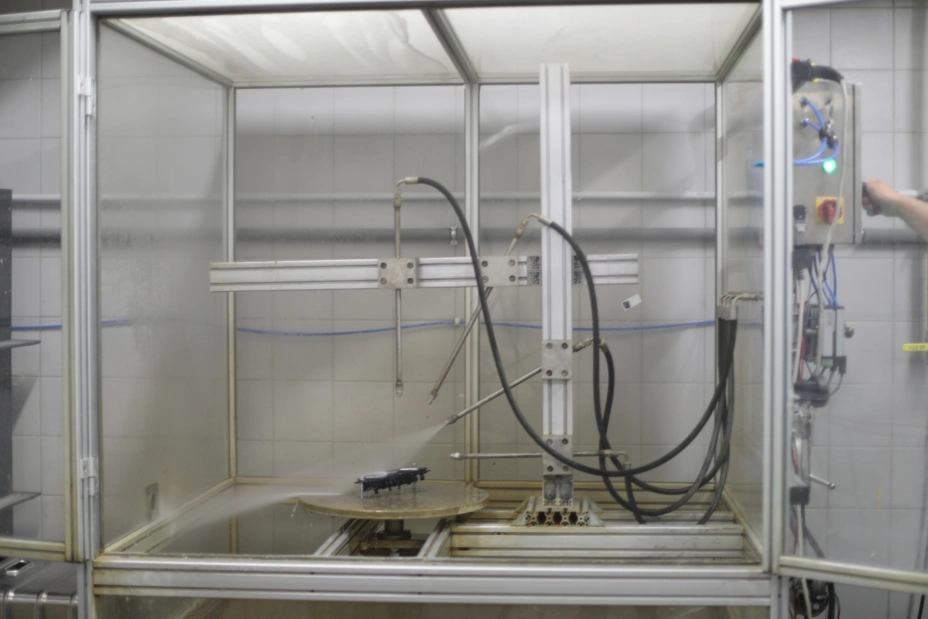

Universal IP tester for IPX3 to IPX9K (Tiyo design),customized setups
Universal water chamber for non-standard water/mud applications
Finger testing kit for IP1X up to IP4X

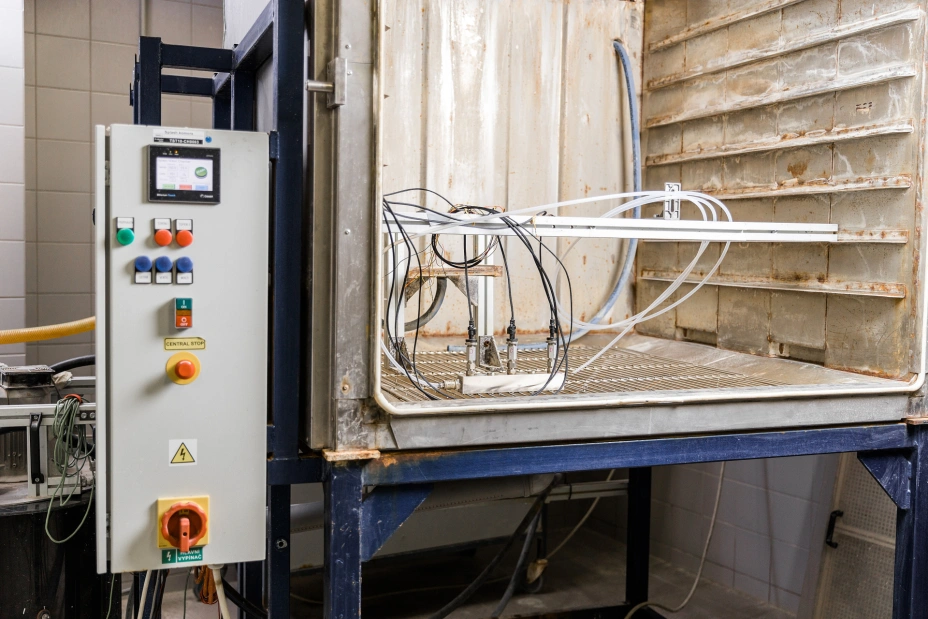

Dust chamber - 1 m3, vacuum, Arizona dust, Talc, Portland cement
Splash Chamber - 2 m3, salt/water/Arizona dust (Tiyo design)

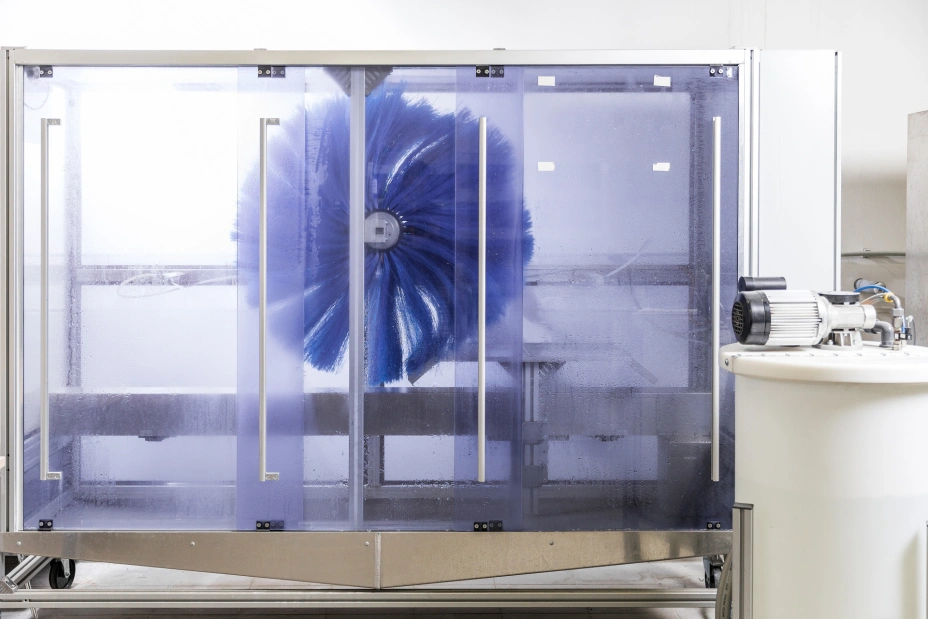

Car wash simulator - Amtec for PV 3.3.3. tests
Advanced immersion tester - IPx7, high-voltage applications up to 800 VDC (Tiyo design)

BENEFITS

Support of special customer requirements
Validation project management
Consultancy of detected issues
Advanced online safety conditions (sample protection)
Preparation of samples – sealing, tightening with tightening screw torque measurement
Post testing results evaluation with water ingress determination
Microscope analyses
Insulation resistance, dielectric strength evaluation
Climatic loading and pre-aging in chambers
Chemical loading before/after the test
UV detection technology
Active cooling of DUT by liquid
Spectral impedance measurement
DAQ systems up to 48 monitoring channels, sampling rate up to 20 MHz
