10 - ACOUSTIC TESTING IN SEMI-ANECHOIC CHAMBER (NVH)

Acoustic camera noise sensing.

Precision Acoustic Analysis & Noise Evaluation

Our semi-anechoic chamber (1.8 x 1.8 x 2.0 m) with 17 dB ambient noise provides ideal conditions for precise measurement. The facility integrates a 1.6 kN Tira shaker for vibration-induced noise testing, supported by multi-axis accelerometers, Polytec laser vibrometry, acoustic cameras, and G.R.A.S microphones. We assess noise distribution, perform acoustic scans, and analyze both operation-induced and vibration-induced noises with frequency spectrum analysis.

Client-Focused Testing & Industry Standards

We welcome client's presence during testing, providing immediate feedback opportunities with an adjacent workshop and microscope laboratory for rapid analysis. All testing is supported by comprehensive video recording and complies with relevant standards including BMW PR 311 series and various industry specifications, ensuring both subjective and objective noise assessment for complete acoustic performance validation.

SCOPE

Experimental assessment of noise distribution in assemblies

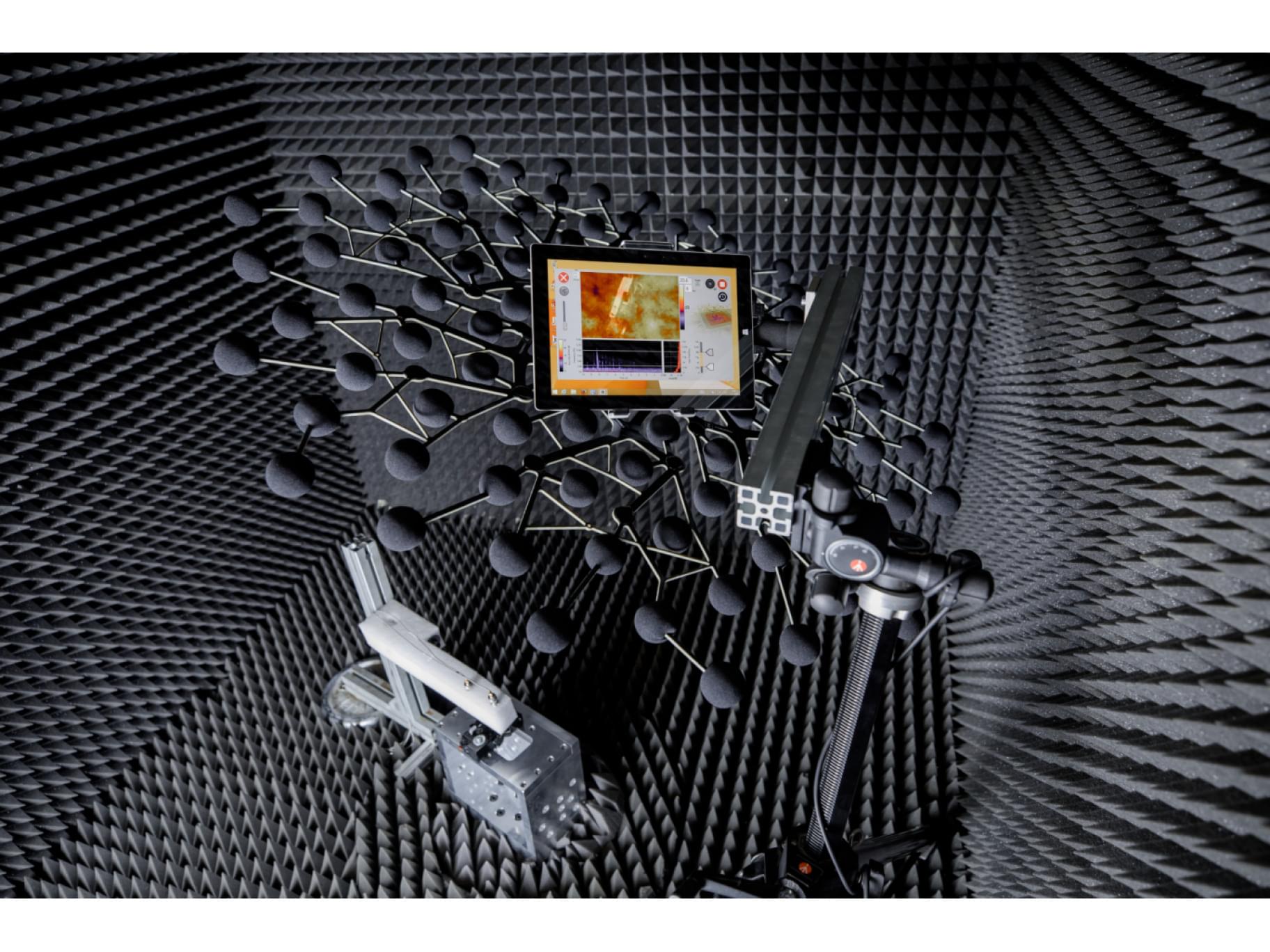

Noise scans using acoustic camera
Noise monitoring by microphones
Sample operation induced noises e.g. kinematic functions noise - linear, rotational
Vibration induced noises at specific frequencies, using low-noise shaker with a semi-anechoic chamber assembly
Subjective sound assessment - noise occurrence
Objective sound assessment by microphones with quantitative data analyses
Frequency analyses - octave spectrum
Samples with suspected components fixation analyses

EQUIPMENT

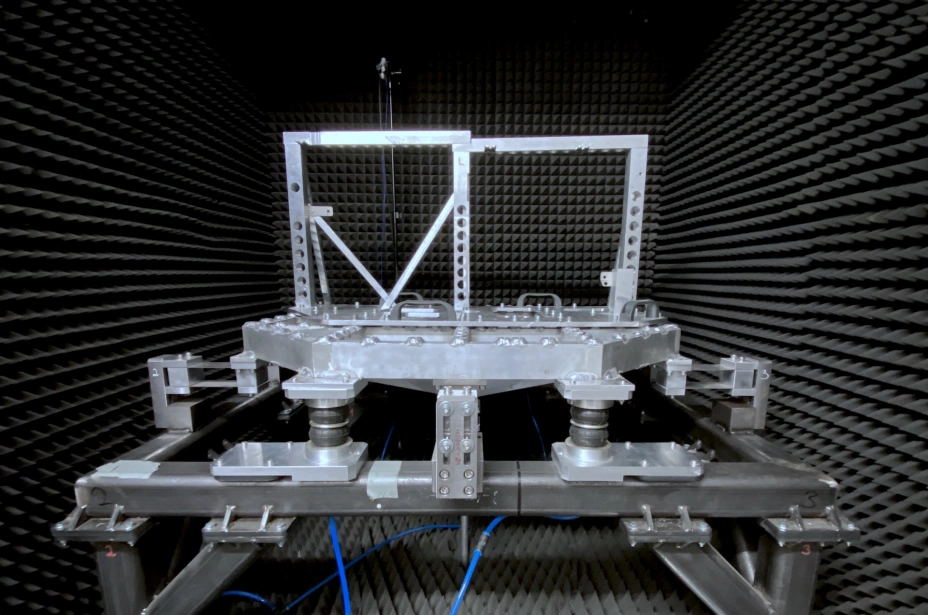

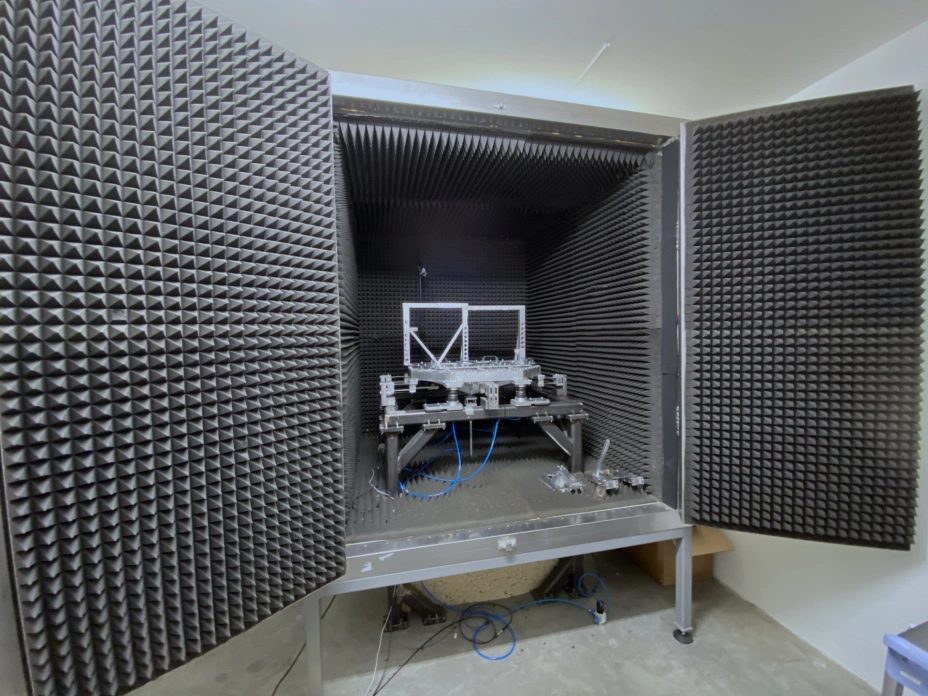

Semi-anechoic chamber with internal operating dimensions of 1800 × 1800 × 2000 mm, equipped with 1,6 kN shaker Tira TV54216
Chamber noise level: without shaker 17 dB with shaker >40 dB (based on vibration profile)
Accelerometers (1-axis, 3-axes) B&K, Dytran, Kistler, PCB
Vibrometer Polytec OFV5000/OFV-505MR

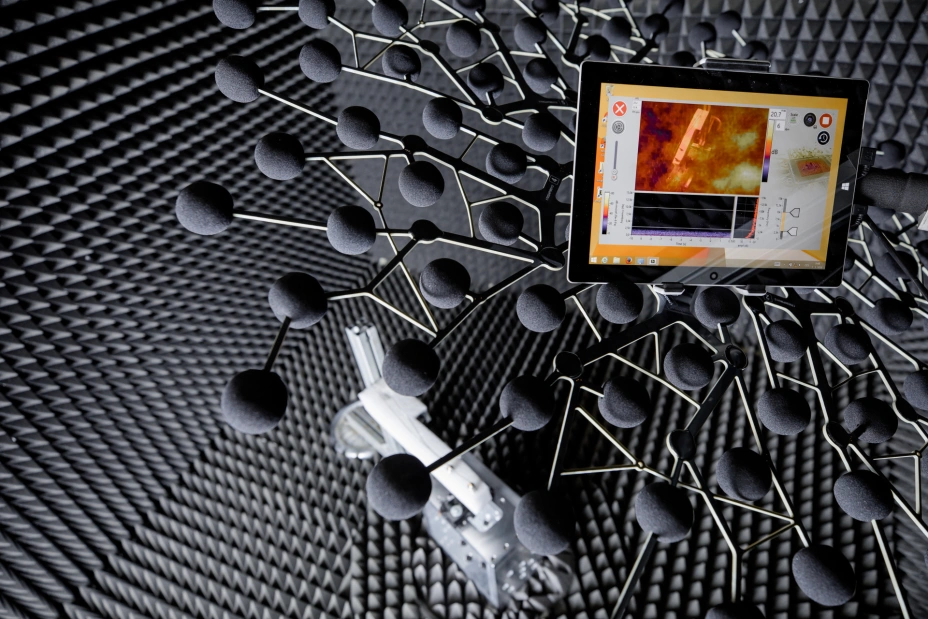

Acoustic camera & CAE Software
Free-field Microphone Set G.R.A.S, type 46AE
