2 - SURFACE FINISH EVALUATION

Light box and grey scales (ČSN EN 20105-A02) from SDL ATLAS

Comprehensive Surface Quality Assessment

Our surface finishing laboratory evaluates coated surfaces using advanced equipment including BYK colorimeters and multi-angle gloss meters. We test paint properties through thickness measurement, adhesion evaluation, steam jet resistance, and stone chip resistance. For interior components, we analyze scratch/mar resistance, abrasion behavior, and micro-scratch resistance with precision testing instruments.

Environmental Durability & Performance Testing

We provide extensive environmental testing through solar simulation chambers, xenon test equipment, and climate facilities. Our laboratory maintains continuous xenon testing for VW specifications with six dedicated chambers. We offer comprehensive sample preparation support, accommodate special customer chemical resistance requirements, and provide complete project management including material validation and consultancy services.

SCOPE

Assessment of appearance

Visual evaluation
Colour and gloss measurement

Paint properties testing 

Thickness
Adhesion test - cross cut, St. Andrew cross
Steam jet resistance
Determination of scratch resistance
- Laboratory car - wash
Stone chip resistance

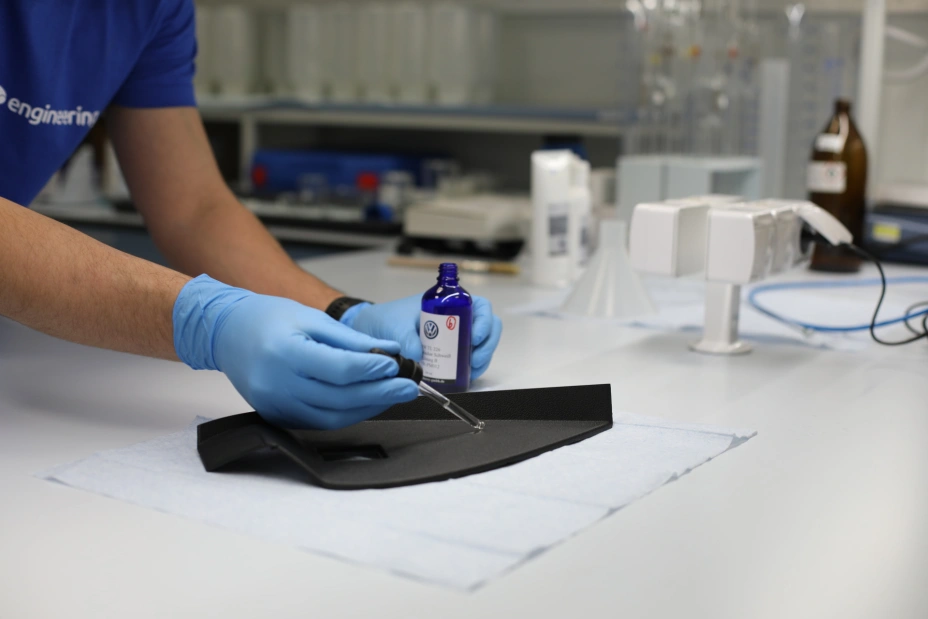

Chemical resistance

Surface properties of interior parts 

Scratch and Mar Resistance test
Abrasion behaviour test
Antistatic properties
Ball drop test (Stress whitening of PP
and other materials)
Micro-scratch resistance for high-gloss surface

Environmental tests 

Solar simulation test (SoSi)
Xeno tests (UV)
Resistance to corrosion test in condensation - water atmospheres
Resistance to corrosion test in salt spray
Dry heat test resistance

EQUIPMENT

BYK Instruments colorimeters Spectro2guide with geometry 45° c:0° and d:8° (spin/spex)
Gloss meter 20°, 60°, 85°

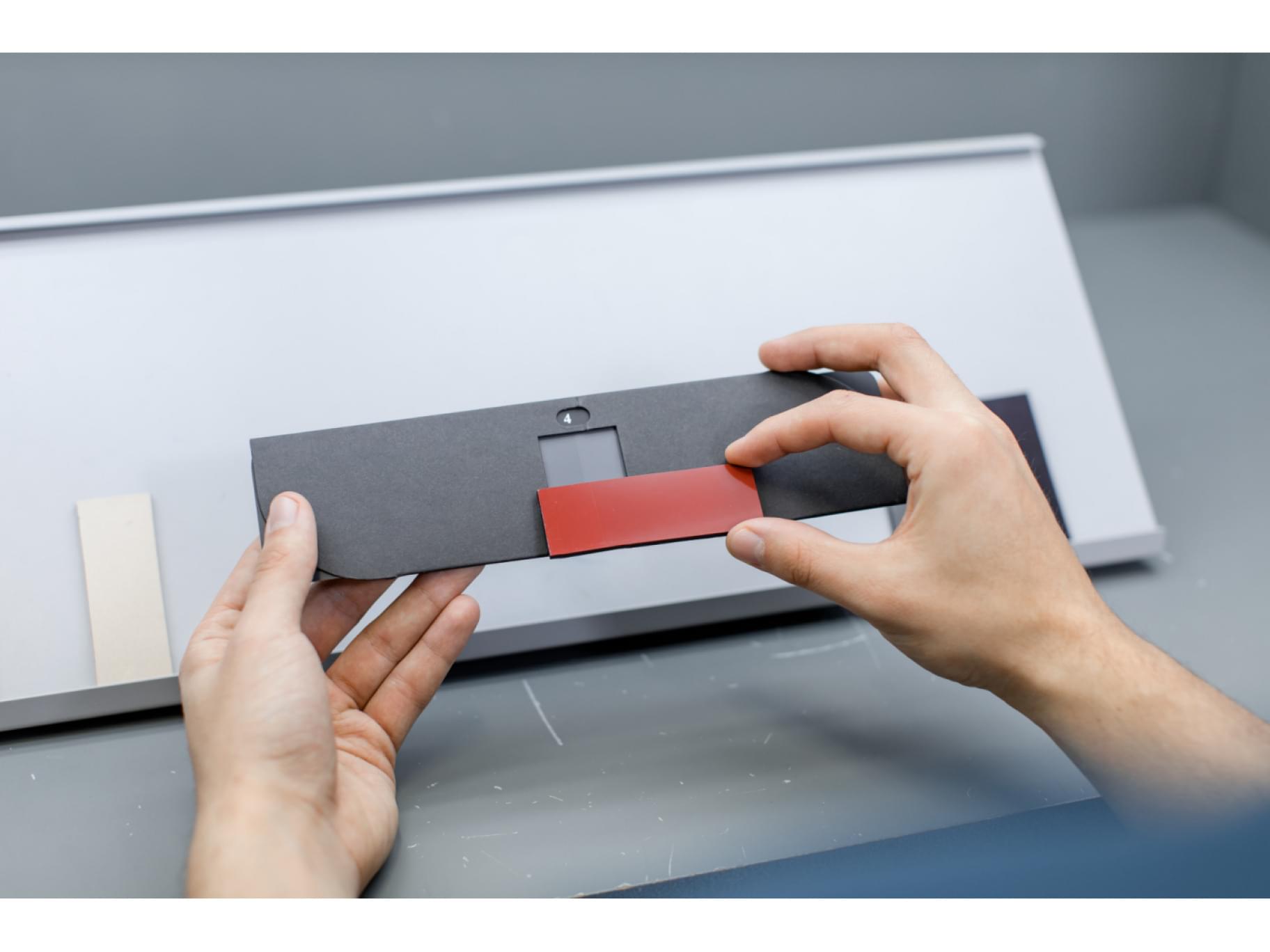

Light box and grey scales (ČSN EN 20105-A02, -A03 from SDL ATLAS)
Coating thickness gauge, ERICHSEN Paint Borer, up to 300 μm)
Steam Jet Tester, WALTER LTA1
Equipment for stone-chip resistance
ERICHSEN Multi-grit tester 508 VDA/508 SAE

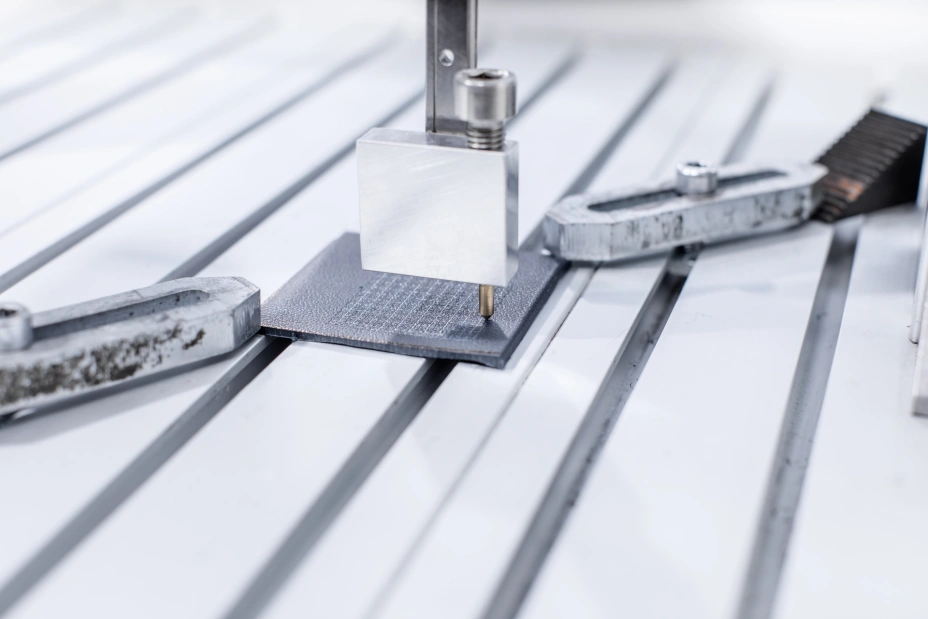

Linear XYZ scratch machine for scratch and mar resistance test
Electronic crockmeter Atlas SDL for abrasion behaviour test

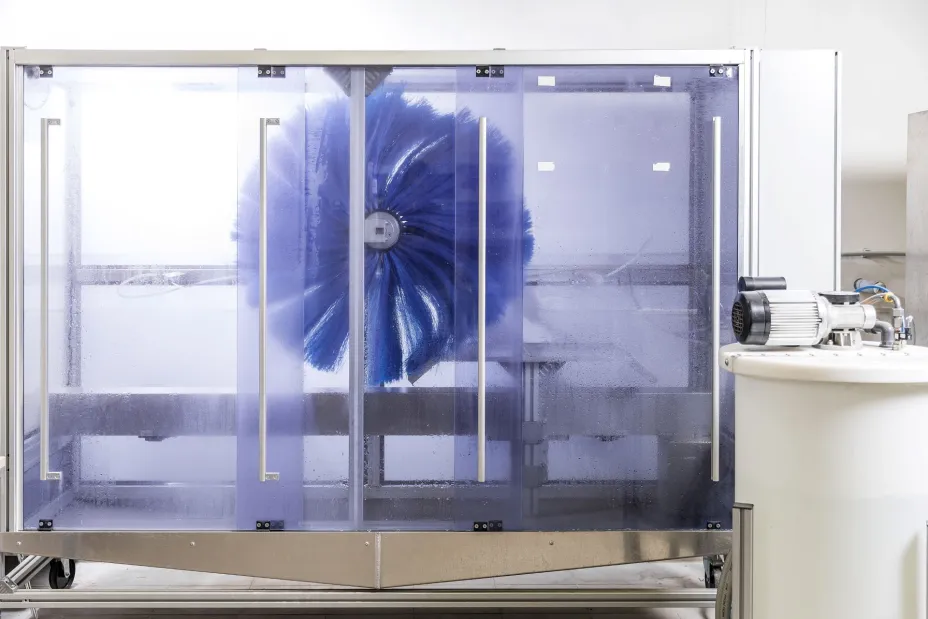

Car Wash Lab Apparatus, AMTEC KISTLER
Equipment for ball drop test (ball or other shape with required weight)
Chemical Laboratory, standards: EU, USA, China

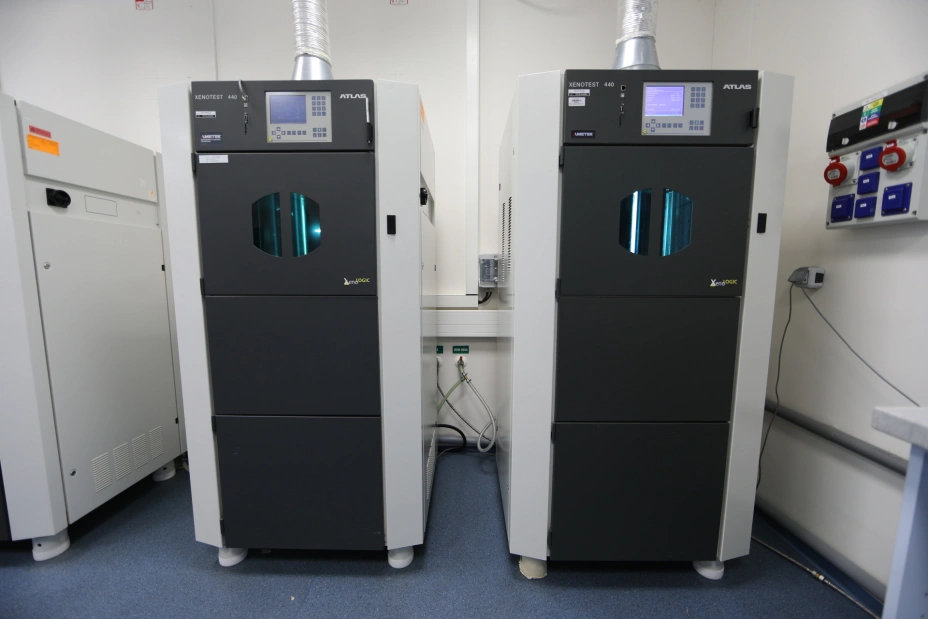

Solar, xeno, climatic, corrosion and humidity chambers

BENEFITS

Continuously running xeno tests for VW (PV 3929,PV 3930, PV 1303, PV 1306) - 4 chambers available
Support with sample preparation (cutting,
sample injection from raw material)
Support of special customer requirements
Chemical resistance test as per customer requirements
Complete project management including subcontracting
Consultancy services
Complete scope of painted parts validation
