26 - DESIGN AND MANUFACTURING OF CONTROL AND MEASUREMENT GAUGES

We have a fully equipped tool room

Precision Testing Fixtures & Control Equipment

We design and manufacture comprehensive dimensional control equipment including 3D CMM fixtures, car body cubings, and precision gauges for verification. Our testing capabilities extend to specialized fixtures for vibration, environmental, and extreme load testing, supported by advanced machinery including 5-axes CNC mills with up to 3.5 x 2.5 x 1.5 m travel and 7 t/ 1 m² capacity. We also develop customized PLC-controlled test benches tailored to specific customer requirements.

Integrated Quality-Assured Production

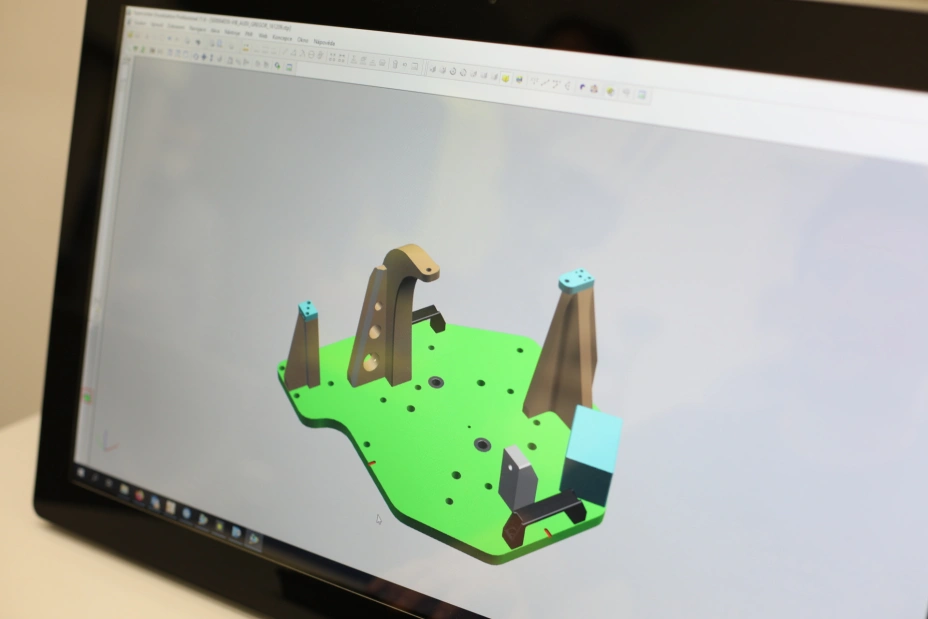

Our end-to-end in-house approach covers everything from initial CAD design and FEM calculations through manufacturing, assembly, testing, and delivery. This integrated workflow ensures superior quality control and efficient project management. All processes adhere to rigorous standards including ISO 9001, aviation-specific EN 9100, laboratory-standard ISO 17025, and TISAX information security protocols, guaranteeing reliable results and secure data handling throughout all project phases.

SCOPE

Dimensional and quality control equipment:

3D CMM fixtures and holders
Cubings, Car body mock-ups
Checking fixtures
Gauges for dimensional verification

Fixtures for component testing and development:

Vibration load
Environmental load
Functional capability
Life cycle testing
Extreme load rigs (vibration, vacuum, temperature)

Customer-specific testing technologies:

PLC controlled test benches
Customized test equipment

EQUIPMENT

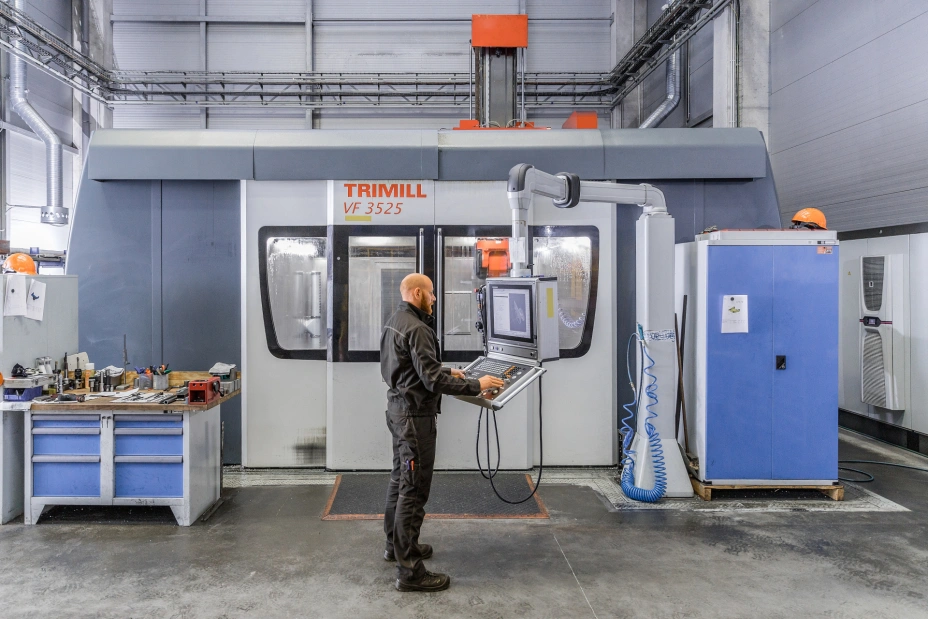

5-axes CNC milling machine: XYZ travels
3.500 x 2.500 x 1.500 mm; table size
4.000 x 2.800 mm; max. load 7t/m²;
milling head 10 - 12.000 RPM

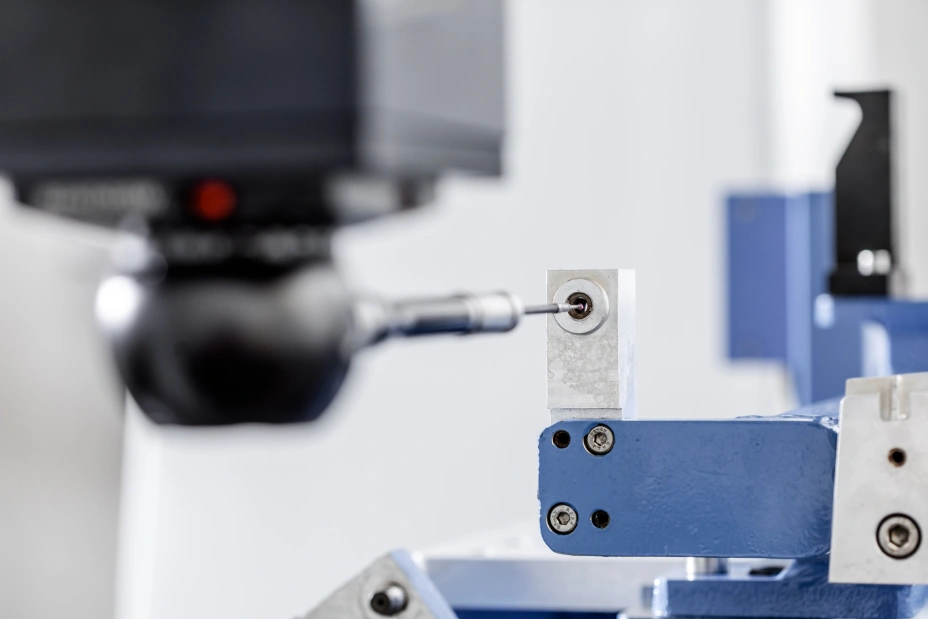

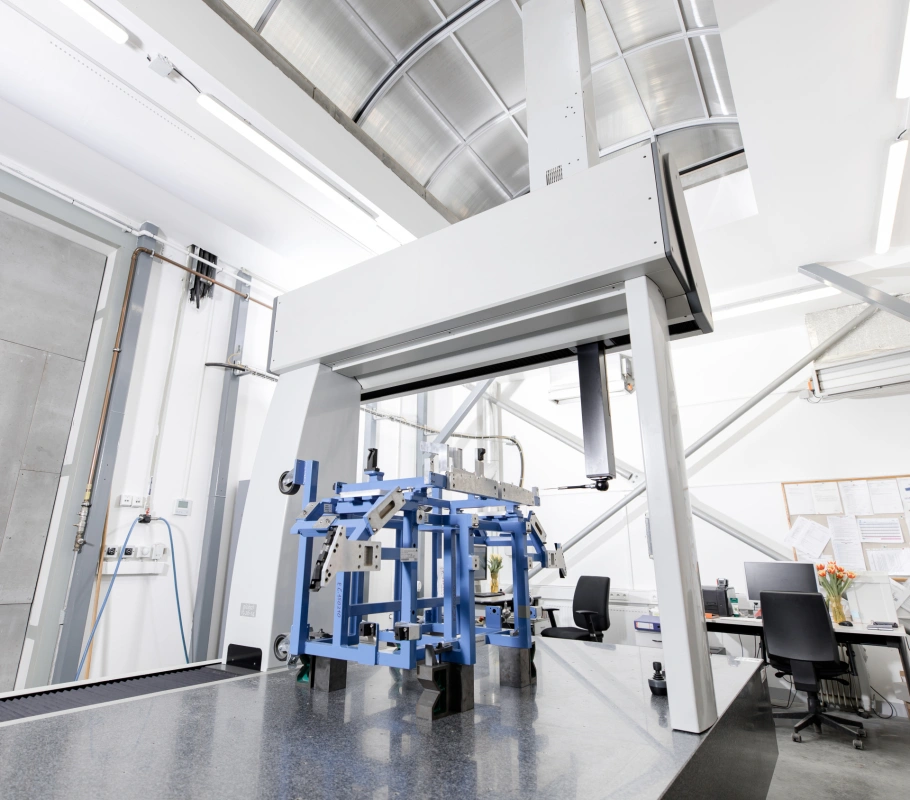

3D CMM system: XYZ travels 1.500 x
2.600 x 1.350 mm
Multiple smaller 5-axes CNC milling
machines, CNC lathe, conventional
machines
Established external partners for laser
cutting and electro-erosive technologies
